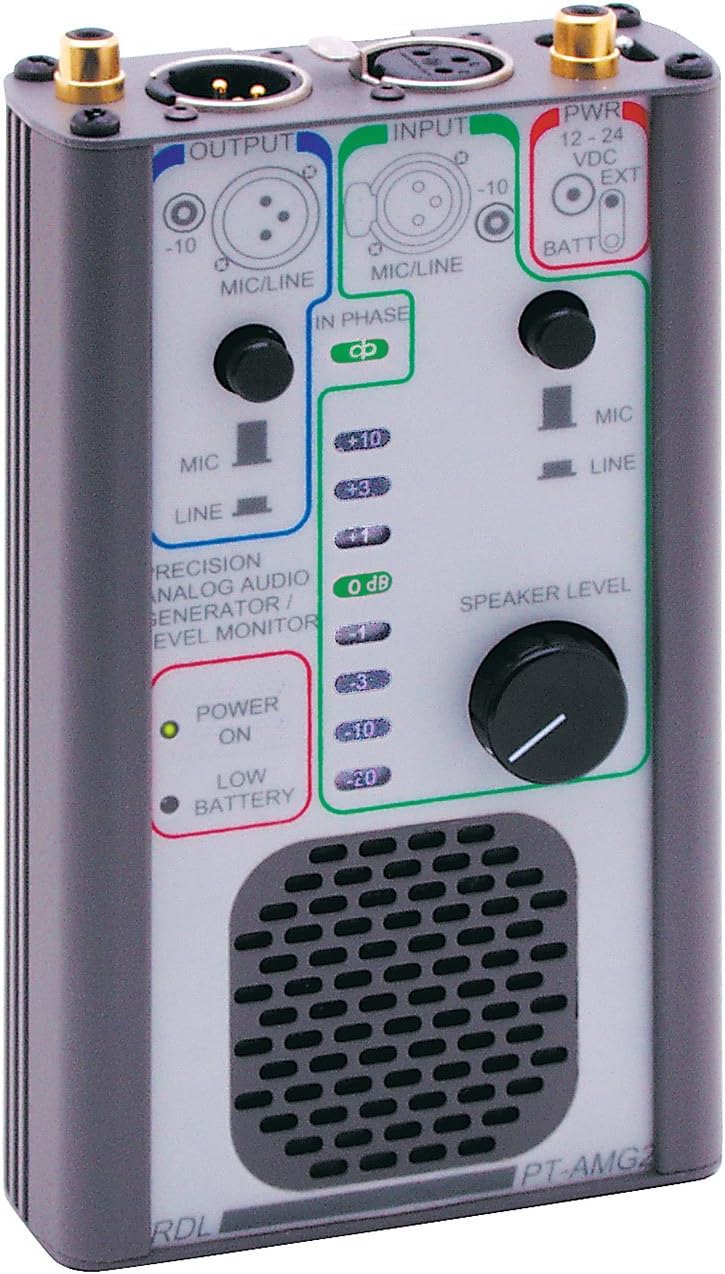

RDL PT-AMG2 Audio Generator Selectable MicLine Level InputOutput, Portable or Bench Operation

Outputs (2): XLR (front-panel selectable mic or line), Phono (consumer level) Balanced Output Level (Selectable): Line: +4 dBu or +6 dBu* (2.5 kΩ load) Mic: -46 dBu (2.5 kΩ load, 50 dB below +4 dBu) Unbalanced Output Level: -10 dBV Oscillator Frequency: 700 Hz nominal Output Stability: Better than 0.01 dB Inputs (2): XLR (front-panel selectable mic or line) Phono (consumer level) Balanced Input Level (Selectable): Line: +4 dBu or +6 dBu* Mic: -46 dBu (50 dB below +4 dBu) Unbalanced Input Level: -10 dBV *Reference Level Preset: Switch-selectable +4 dBu or +6 dBu Power Requirement: 9 V internal (2) or 12 to 30 Vdc external @ 45 mA Ambient Operating Environment: 0 C to 50 C
